High Current/High Voltage OPAMP with Boost Output Current Greater Than 1A

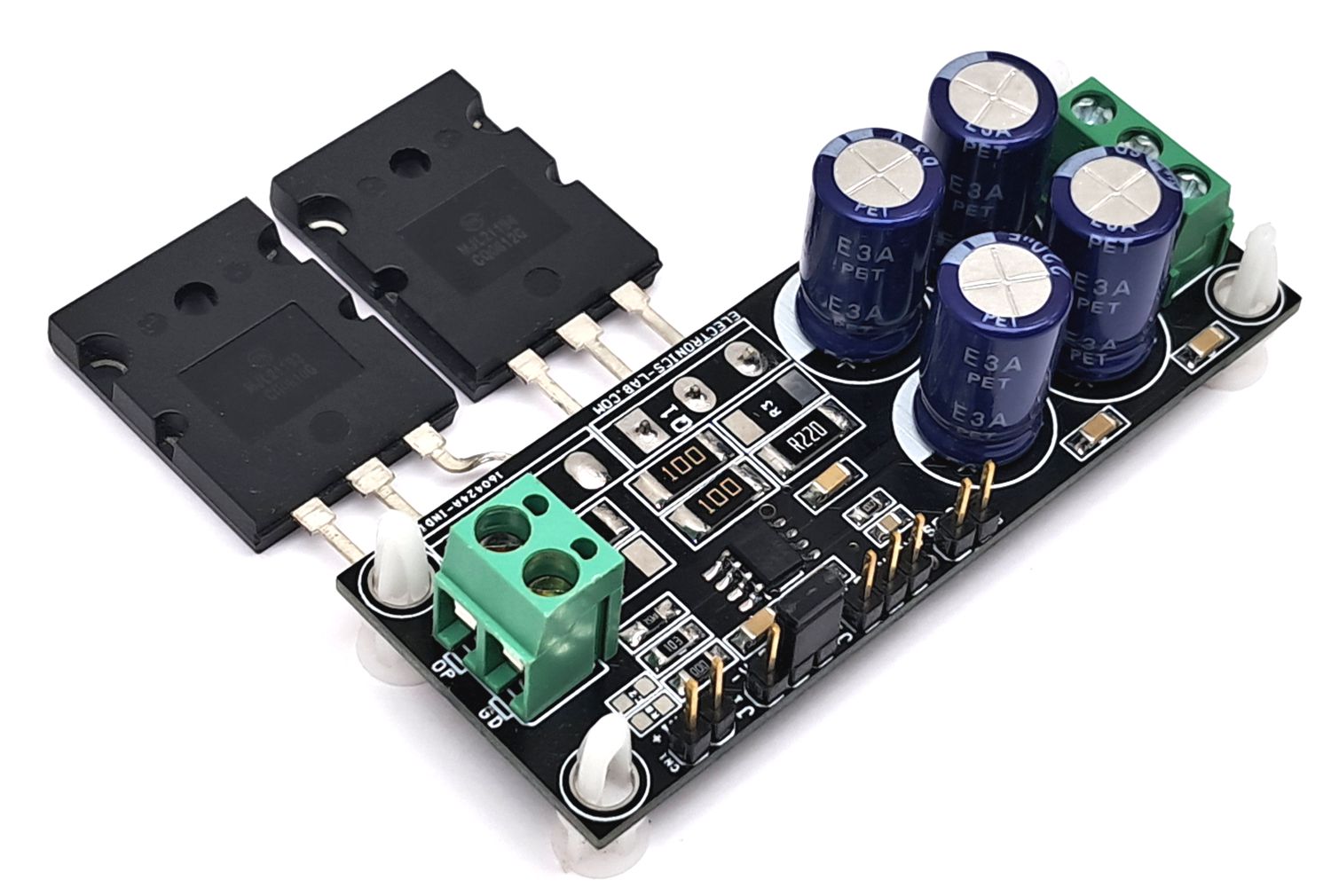

This project provides High Voltage and High Current output swing. The board is built using OPA454 OPAMP and 2 x high current NPN/PNP BJT Transistors. Output transistors Q1 and Q2 provide positive and negative output currents to the load. The project works with an input power supply up to +/-50V DC. OPAMP Vout swings from +47V to -48V ... More Details
SKU: EL150179
